22x11.00-8 Utility ATV Quad Trailer Kit P334 Wheels Axles & Swivel Hitch 900kgs

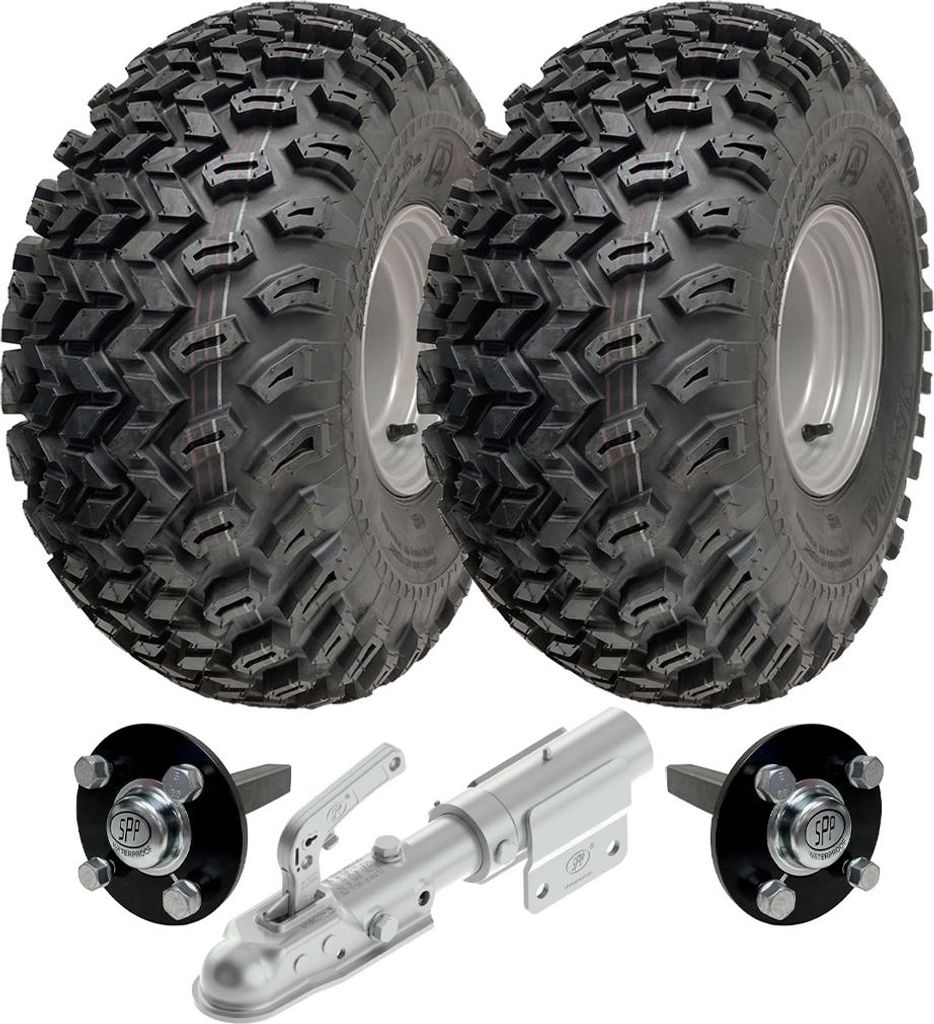

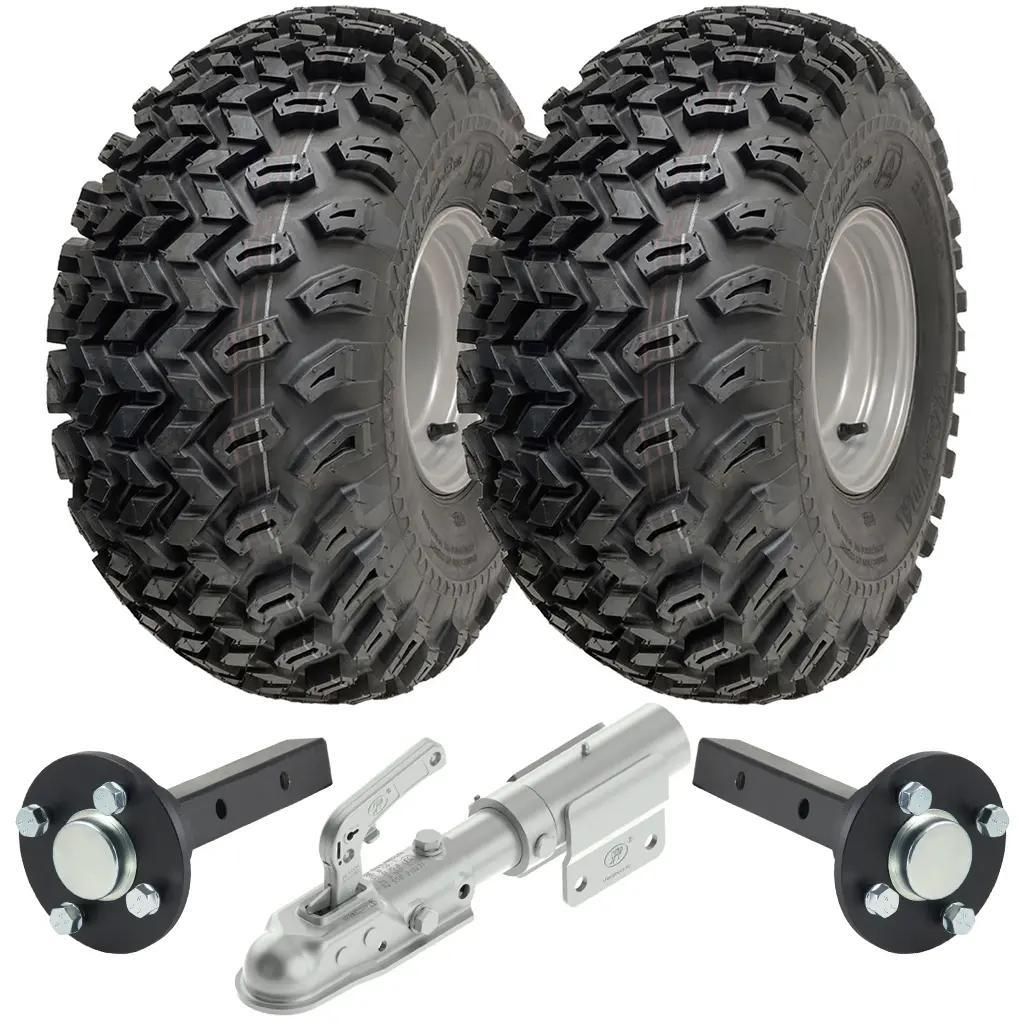

00-8 Utility ATV trailer kit with swivel hitch.Contents of this kit include:2 x Wheels, 22x11.00-8 4ply Wanda P334 Utility tyres on steel rim 4x100mm PCD.2 x Stub axles, SPP 4x100mm hubs fitted to 40x40x125mm solid stub.1 x Swivel hitch for 50x50mm box section.Item specifications: Wheels:• 22x11.00-8 4ply Wanda P334 Utility tyres,• Overall diameter: 565mm,• Max width of tyre: 255mm,• Tread depth: 15.5mm,• Inflation: 20psi,• Max load per wheel: 455kg @ 50km/h,• load/speed index: 80B,• E-marked tyres: E4-75R-0005149,Wheel rims:Heavy duty welded rims,Powder coat paint with E-coating anti-corrosion treatment for superior finish,Pitch Circle Diameter: 100mm,Centre hole diameter: 60mm.Item specifications: Stub axles:Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts.PCD is 100mm,Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long.The hubs are waterproof.The shaft is 40x40mm x 200mm long, solid steel.The stub bar has two pre-drilled mounting holes.Item specifications: Swivel Hitch:Heavy duty steel towing hitch with 360 Degree.This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart).The bolt holes are from an M12 bolt.Overall length is 440mm.Max load is 1700kg.This is for use on ATV trailers & equipment Off Road use. It is produced in the EU.Safety feature for off road towing.If your trailer turns over the swivel hitch rotates and your vehicle towing is not flipped with it.Potentially saving lives.Kit total load capacity 900kgs.Off road use only because of the swivel hitch.
